Sodium dibutyl naphthalene sulfonate (CAS number 25638-17-9) is a highly effective anionic surfactant widely used in agriculture as a dispersant and emulsifier. Its ability to stabilize suspensions and emulsions enhances the performance of agricultural formulations, particularly pesticides, herbicides, and fertilizers. This comprehensive overview explores its chemical properties, mechanisms of action, specific agricultural applications, advantages, limitations, environmental considerations, and practical guidelines for its use in agricultural settings.
Chemical Structure and Properties

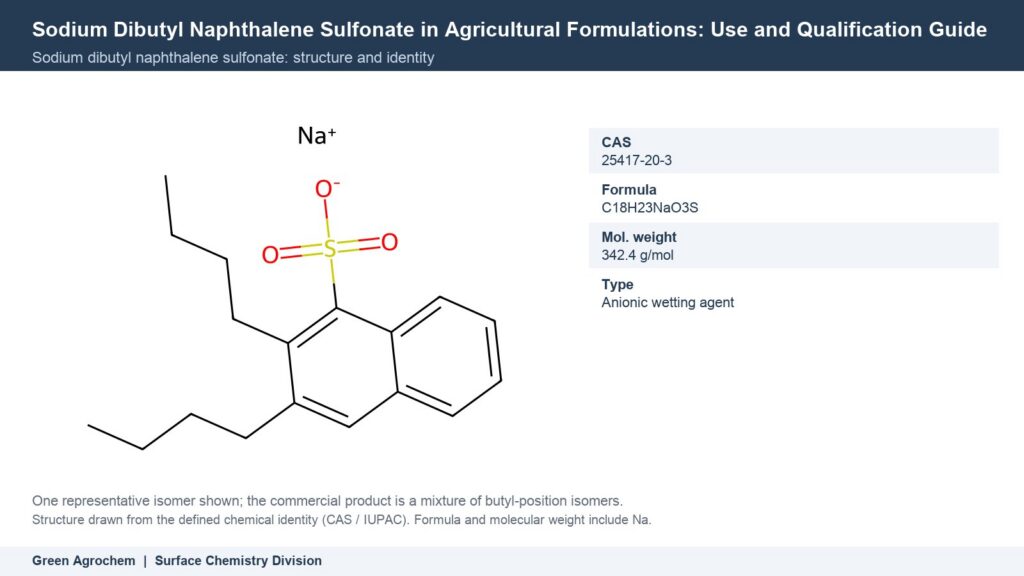

Sodium dibutyl naphthalene sulfonate has the molecular formula C₁₈H₂₃NaO₃S and a molecular weight of 342.43 g/mol. Its structure comprises:
- Naphthalene Core: A polycyclic aromatic hydrocarbon (C₁₀H₈) with two fused benzene rings, providing a robust hydrophobic backbone that interacts with non-polar substances like oils or organic active ingredients.
- Dibutyl Groups: Two butyl chains (C₄H₉) attached to the naphthalene ring, enhancing its hydrophobic character and affinity for organic materials.
- Sulfonate Group (SO₃⁻Na⁺): A polar, negatively charged group that is highly water-soluble, conferring its anionic surfactant properties and enabling interactions with aqueous environments.
Key Properties for Agricultural Use
- High Water Solubility: Dissolves readily in water, making it easy to incorporate into aqueous agricultural formulations.
- Hard Water Tolerance: Maintains efficacy in the presence of calcium and magnesium ions, which are common in groundwater used for spraying.
- Amphiphilic Nature: Balances hydrophilic and hydrophobic components, enabling it to stabilize emulsions and dispersions.
- Biodegradability: Breaks down relatively quickly through microbial action, reducing long-term environmental persistence.
- Stability: Performs reliably under typical agricultural conditions but is sensitive to strong acids, alkalis, and high temperatures, which can degrade its performance.
- Appearance: Available as a beige solid (powder or granules) or a light yellow transparent liquid, with the liquid form being more common in agricultural sprays.
These properties make sodium dibutyl naphthalene sulfonate a versatile and effective component in agricultural formulations, particularly for pesticide and herbicide applications.
Mechanisms of Action in Agriculture
Sodium dibutyl naphthalene sulfonate functions primarily as a dispersant and emulsifier in agriculture, addressing the challenges of delivering active ingredients effectively to crops. Its mechanisms include:
- As a Dispersant:
- Particle Suspension: It adsorbs onto solid particles (e.g., insoluble active ingredients or fillers) in pesticide formulations, preventing aggregation. The hydrophobic naphthalene and butyl groups bind to particle surfaces, while the sulfonate group extends into water, creating electrostatic repulsion between particles.
- Stabilization: The negative charge of the sulfonate group, combined with steric hindrance from the bulky naphthalene structure, keeps particles evenly distributed, preventing settling or clumping during storage or application.
- Benefit: Ensures uniform distribution of active ingredients in spray solutions, leading to consistent crop coverage.
- As an Emulsifier:
- Oil-Water Mixing: Many pesticide active ingredients are oil-based or hydrophobic, requiring emulsification in water for spray applications. The surfactant’s hydrophobic tail interacts with the oil phase, while the hydrophilic sulfonate head interacts with water, forming stable micelles.
- Emulsion Stability: It prevents oil-water separation, ensuring a homogenous mixture during spraying.
- Benefit: Enhances the delivery of oil-based pesticides, improving adhesion to plant surfaces and efficacy.
- Wetting Agent:
- Surface Tension Reduction: By lowering the surface tension of water, it improves the spreadability of spray solutions on waxy or hydrophobic plant surfaces (e.g., leaves).
- Benefit: Enhances penetration and coverage, ensuring active ingredients reach target areas effectively.
These mechanisms collectively improve the performance of agricultural formulations, making sodium dibutyl naphthalene sulfonate a critical adjuvant in crop protection.
Specific Agricultural Applications
In agriculture, sodium dibutyl naphthalene sulfonate is primarily used in pesticide and herbicide formulations, but it also finds applications in fertilizers and soil conditioners. Below are its key uses:
- Pesticide Formulations:
- Role: Acts as a dispersant and emulsifier in liquid pesticide formulations, such as emulsifiable concentrates (ECs) and suspension concentrates (SCs).
- Function: Stabilizes active ingredients (e.g., insecticides like pyrethroids or fungicides like azoxystrobin) in water-based sprays, ensuring uniform distribution and preventing nozzle clogging in spray equipment.
- Example: In an emulsifiable concentrate of a systemic insecticide, it emulsifies the oil-based active ingredient, allowing it to mix with water for spraying and ensuring even application on crops like corn or soybeans.
- Herbicide Formulations:
- Role: Disperses or emulsifies herbicide active ingredients, such as glyphosate or atrazine, in aqueous solutions.
- Function: Improves spray coverage on weeds by reducing surface tension and stabilizing the formulation, ensuring the herbicide remains effective even in hard water conditions.
- Example: In a post-emergent herbicide spray, it ensures uniform dispersion of the active ingredient, enhancing weed control in fields with dense vegetation.
- Fertilizer Solutions:
- Role: Disperses micronutrients or insoluble fertilizer components in liquid fertilizers.
- Function: Prevents settling of particles, ensuring consistent nutrient delivery to crops.
- Example: In foliar fertilizers, it keeps micronutrients like zinc or iron suspended, improving uptake by plant leaves.
- Soil Conditioners:
- Role: Disperses organic or inorganic additives in soil treatment products.
- Function: Enhances the distribution of conditioners in soil, improving soil structure or water retention.
- Example: In humic acid-based soil conditioners, it ensures even dispersion, promoting soil health in agricultural fields.
- Adjuvant in Tank Mixes:
- Role: Added to tank mixes to improve the performance of pesticides or herbicides.
- Function: Enhances wetting, spreading, and penetration of active ingredients on plant surfaces, particularly on waxy or hairy leaves.
- Example: Farmers may add it to a tank mix of herbicides to improve coverage on weeds with hydrophobic surfaces, like pigweed.
These applications demonstrate its versatility in improving the efficacy and application efficiency of agricultural products.
Advantages in Agricultural Use
Sodium dibutyl naphthalene sulfonate offers several advantages over other surfactants and dispersants in agricultural applications:
- Hard Water Tolerance: Its sulfonate group resists forming insoluble salts with calcium or magnesium ions, ensuring consistent performance in regions with hard groundwater, which is common in agricultural settings.
- Versatile Stabilization: Provides both electrostatic (via the anionic sulfonate group) and steric (via the bulky naphthalene structure) stabilization, making it effective for a wide range of active ingredients, from solids to oils.
- Enhanced Spray Efficiency: By reducing surface tension, it improves spray droplet adhesion and coverage on plant surfaces, reducing runoff and increasing the efficacy of pesticides and herbicides.
- Compatibility: Works well with a variety of active ingredients and formulation types (e.g., emulsifiable concentrates, suspension concentrates), making it a flexible choice for formulators.
- Biodegradability: Breaks down relatively quickly in the environment, reducing long-term ecological impact compared to persistent surfactants like some alkylphenol ethoxylates.
For example, compared to non-ionic surfactants like polysorbates, sodium dibutyl naphthalene sulfonate performs better in hard water and ionic environments, which are prevalent in agricultural spraying. Compared to linear alkylbenzene sulfonates (LAS), its naphthalene-based structure provides stronger adsorption to organic particles, making it more effective for dispersing complex pesticide formulations.
Limitations and Challenges
Despite its advantages, sodium dibutyl naphthalene sulfonate has limitations that must be considered in agricultural applications:
- Sensitivity to Extreme Conditions:
- pH Sensitivity: Strong acids or alkalis can protonate or hydrolyze the sulfonate group, reducing its dispersing or emulsifying ability. Most agricultural sprays operate in a neutral or slightly acidic pH range, but care must be taken with highly acidic or alkaline formulations.
- Temperature Sensitivity: High temperatures, such as those encountered during prolonged storage in hot climates, can degrade the molecule, impacting its performance.
- Irritation Potential:
- In its solid form, it is irritating to the skin, eyes, and respiratory system, requiring protective equipment during handling or formulation.
- The liquid form, common in agricultural sprays, is less irritating but still requires caution, especially in concentrated solutions.
- Environmental Persistence:
- While biodegradable, the naphthalene core may degrade more slowly than fully aliphatic surfactants, potentially leading to temporary accumulation in soil or water if overused.
- High concentrations in runoff can disrupt aquatic ecosystems by reducing oxygen levels or altering water chemistry, necessitating careful application rates.
- Cost Considerations:
- The synthesis of sodium dibutyl naphthalene sulfonate, involving sulfonation and alkylation of naphthalene, can be more expensive than simpler surfactants like sodium dodecyl sulfate (SDS). This may limit its use in cost-sensitive agricultural markets.
- Foaming: As an anionic surfactant, it can produce foam during mixing or spraying, which may clog equipment or reduce application efficiency if not managed with anti-foaming agents.
These challenges require careful formulation, handling, and application to maximize its benefits in agriculture.
Environmental Considerations
The environmental impact of sodium dibutyl naphthalene sulfonate is a critical consideration in agriculture, where runoff and soil contamination are concerns:
- Biodegradability: It is classified as biodegradable, breaking down into simpler compounds through microbial action. However, the naphthalene core may degrade more slowly than aliphatic chains, requiring monitoring in sensitive ecosystems.
- Aquatic Toxicity: High concentrations in water bodies (e.g., from spray drift or runoff) can harm aquatic life by reducing oxygen availability or altering pH. Proper application techniques, such as using buffer zones near water bodies, mitigate this risk.
- Soil Impact: Repeated use in soil may lead to temporary accumulation, but its biodegradability generally prevents long-term buildup. Soil microbes typically break it down within weeks under favorable conditions.
- Regulatory Compliance: Its use is regulated by agencies like the U.S. Environmental Protection Agency (EPA) or the European Chemicals Agency (ECHA). Its CAS number (25638-17-9) facilitates tracking in databases like the Toxic Substances Control Act (TSCA) inventory. Farmers and formulators must adhere to local guidelines on application rates and disposal.
- Sustainable Practices: Its biodegradability makes it a more environmentally friendly option than non-degradable surfactants. However, optimizing dosages, using precision spraying, and treating runoff through filtration or retention ponds can further reduce its environmental footprint.
To balance efficacy and environmental responsibility, agricultural users should follow best practices, such as applying only the recommended amount and avoiding spraying near water sources.
Practical Guidelines for Agricultural Use
To ensure safe and effective use of sodium dibutyl naphthalene sulfonate in agriculture, consider the following guidelines:
- Formulation:
- Use in emulsifiable concentrates (ECs) or suspension concentrates (SCs) at concentrations specified by the formulation requirements, typically 1-5% w/w, depending on the active ingredient.
- Test compatibility with other formulation components, as its anionic nature may interact with cationic additives, potentially forming precipitates.
- Incorporate anti-foaming agents if excessive foam is observed during mixing or spraying.
- Application:
- Dilute liquid formulations in water according to label instructions, ensuring thorough mixing to achieve a stable emulsion or dispersion.
- Use spray equipment with appropriate nozzles to minimize drift and ensure even coverage.
- Apply in conditions with moderate temperatures and neutral pH water to maintain surfactant efficacy.
- Handling and Storage:
- Solid Form: Store in a cool, dry, well-ventilated area away from heat sources, as it is flammable. Use sealed containers to prevent dust generation or moisture absorption.
- Liquid Form: Store in sealed containers to avoid contamination or evaporation. Avoid freezing or extreme heat to preserve stability.
- Wear protective equipment (gloves, goggles, masks) when handling the solid form or concentrated liquid to avoid skin, eye, or respiratory irritation.
- Consult Safety Data Sheets (SDS) for detailed handling, spill response, and first-aid protocols.
- Disposal:
- Dispose of unused or excess solutions through approved agricultural waste management systems, such as on-farm treatment or licensed disposal facilities.
- Avoid direct release into water bodies or untreated runoff into soil to prevent environmental harm.
- Regulatory Compliance:
- Verify that the product complies with local agricultural regulations, using its CAS number (25638-17-9) to check its status in databases like EPA’s TSCA or ECHA’s REACH.
- Follow label instructions for maximum application rates and restricted-use areas (e.g., near water bodies).
Comparison to Other Agricultural Surfactants
To contextualize its role, sodium dibutyl naphthalene sulfonate can be compared to other surfactants used in agriculture:
- Linear Alkylbenzene Sulfonates (LAS):
- Similarities: Both are anionic surfactants used as emulsifiers and dispersants.
- Differences: LAS is less effective in hard water and has a simpler structure, making it less suited for dispersing complex organic particles. Sodium dibutyl naphthalene sulfonate’s naphthalene core provides stronger adsorption to hydrophobic surfaces.
- Non-Ionic Surfactants (e.g., Polysorbates, Alcohol Ethoxylates):
- Similarities: Both are used in pesticide emulsions and improve spray coverage.
- Differences: Non-ionic surfactants rely on steric stabilization and may lose efficacy in high-ionic-strength water, while sodium dibutyl naphthalene sulfonate’s anionic charge ensures robust performance in hard water.
- Polymeric Dispersants (e.g., Polyacrylates):
- Similarities: Used to stabilize suspensions in agricultural formulations.
- Differences: Polymeric dispersants are more suited for inorganic particles (e.g., fertilizers), while sodium dibutyl naphthalene sulfonate excels with organic or oily active ingredients due to its aromatic structure.
These comparisons highlight its niche in agricultural applications requiring hard water tolerance and strong dispersion of organic materials.
Future Trends in Agricultural Use
As agriculture evolves toward precision and sustainability, the use of sodium dibutyl naphthalene sulfonate is likely to be shaped by several trends:
- Precision Agriculture: Its role in improving spray efficiency aligns with precision farming techniques, such as drone-based spraying, where uniform coverage is critical.
- Sustainable Formulations: Growing demand for eco-friendly adjuvants may drive innovations in its synthesis to enhance biodegradability or reduce production costs.
- Regulatory Pressures: Stricter regulations on surfactant runoff may require optimized formulations with lower environmental impact, such as combining it with bio-based co-surfactants.
- Emerging Applications: Its dispersing properties could be explored in new areas, such as nano-fertilizers or bio-pesticides, where uniform particle distribution is essential.
Conclusion
Sodium dibutyl naphthalene sulfonate is a highly effective dispersant and emulsifier in agriculture, playing a critical role in stabilizing pesticide, herbicide, and fertilizer formulations. Its ability to tolerate hard water, reduce surface tension, and ensure uniform distribution of active ingredients makes it indispensable for improving crop protection and nutrient delivery. While its sensitivity to extreme conditions and potential environmental impacts require careful management, its biodegradability and robust performance position it as a valuable tool in modern agriculture. By following proper formulation, application, and disposal practices, farmers and formulators can maximize its benefits while minimizing risks, contributing to efficient and sustainable agricultural practices.
